H-beam Flange Straightening Machine
H-beam combination machine
H-beam combination machine


Hydraulic straightening machine
Main Features:

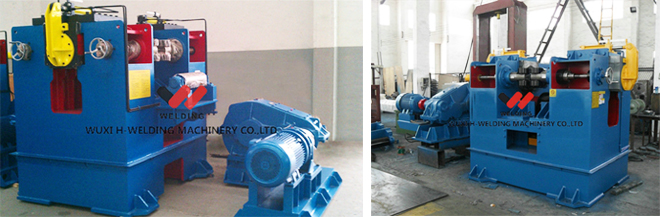

This machine is specially used for the H-beam flange distortion straightening, which includes hydraulic and mechanical straightening type. The structure of mechanical flange straightening machine is simple, with convenient and reliable operation which used for semi-automatic H-beam production line. The hydraulic type straightening has strong straightening force and high automation which usually used for full automatic H-beam production line. The straightening roller and powered roller is good alloy steel, which are made after heat-treating with long life using.

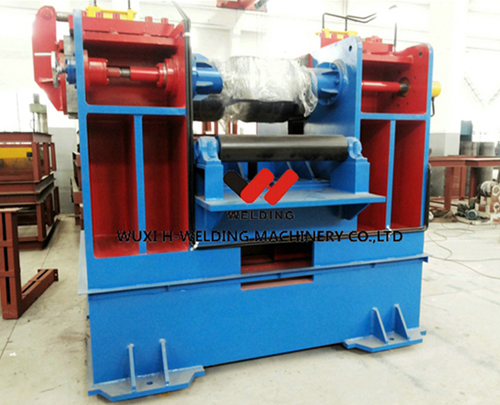

Hydraulic type straightening machine is used for the angle distortion straightening of the H-beam with large thickness. Hydraulic cylinder presses from down side to up side, which has strong force and high driving torque and with good straightening efficiency and good quality. This machine is widely used for the fire electric furnace, heavy duty steel structure construction, steel bridge, water power industry.



Model

HYJ-600

HYJ-800

YJB-60

Flange width (mm)

150-600

200-800

200-800

Flange thickness (mm)

≤ 20

≤ 40

≤ 60

Web minimum height (mm)

160

350

350

Material

Q235A

Q235A

Q345A

Corrected speed (m/min)

8.5

18

6.37

Total power (KW)

9

25

37

Straitening type

Mechanical type

Hydraulic type
