Edge Milling Machine

Main Features:

This machine can provide one-time milling and shaping for the beveling of bevel edge, straight edge, U edge before metal plate welding. Compared with edge planer, it has low price, high efficiency, low energy cost, and can be operated and repaired, with a thickness of 6-50mm. It prove to be an ideal option for you.

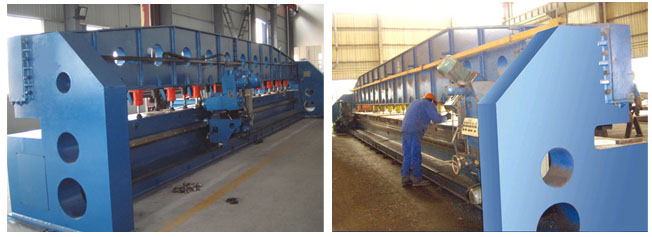

Pictures

Technical parameters

Model	The length of milling(mm)	The thickness of milling(mm)	The speed of milling(m/h)	The power of driving motor(kw)	The power of milling motor(kw)	The power of oil pump milling ,motor(kw)
XBJ-4	4000	6-50	18-30	1.5	5.5	5.5
XBJ-6	6000	6-50	18-30	1.5	5.5	5.5
XBJ-9	9000	6-50	18-30	1.5	5.5	5.5
XBJ-12	12000	6-50	18-30	1.5	5.5	5.5
