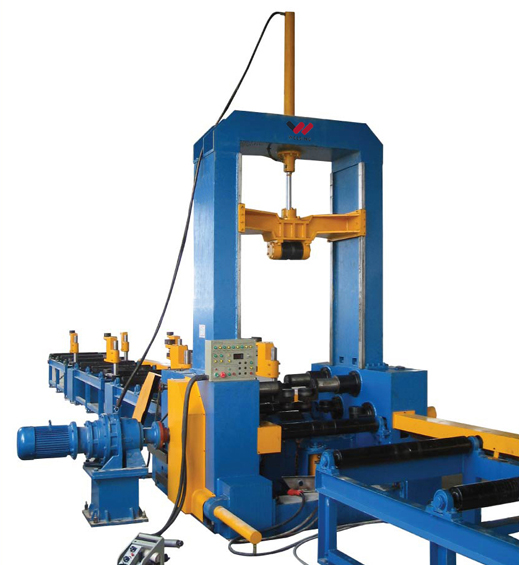

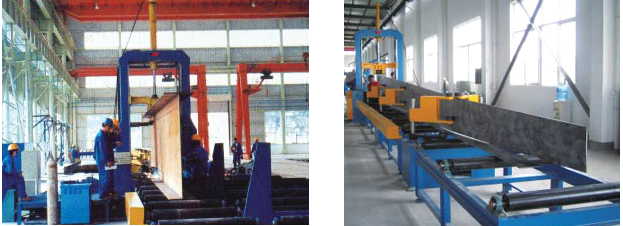

H-beam Assembling Machine
Main Features:
Process including clamping and alignment of web and flange, automatic tack-welding is controlled with PLC. Main machine is driven by A.C.inverter, stable and reliable. Upper press-beam is guided thru left and right four rails, ensuring steady clamping of long time use.


Item

Z15

Z18

Z20

Size of Web

 Height

200-1500mm

200-1800mm

200-2000mm

 Thickness

6-32mm

Size of Flange

Width

200-800mm

 Thickness

6-40mm

Work-piece length

4000-15000 mm

Assembling speed

0.5-6m/min

Machine power

Main frame power 11.7KW
(25KVA for 2 sets of CO2 Welding machine excluded)
