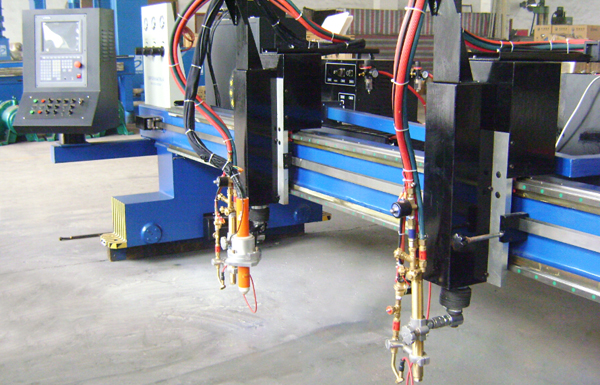

CNC flame & plasma cutting machine
Main Features:
CNC flame&plasma cutting machine is a kind of high-efficient and high-precise multi-functional cutting device, with the function of longitudinal multi-head cutting and transverse straight-end cutting, and it also can do other geometric shape cutting. The gantry type structure design can ensure the high strength and rigidity. It equipped with Japanese Panasonic full-digital AC servo driving system and German Neugart reducer, it runs steadily and cutting with a high precision.


Model

Driving type

Rail span (mm)

Effective cutting width(mm)

Cutting thickness(mm)

Cutting speed(mm/min)

Free running speed(mm/min)

Vertical range of the cutting torch(mm)

Flame cutting

Plasma cutting

Flame cutting

Plasma cutting

CNC-CGP-2500

Single side

2500

1700

6-150

Depend on  plasma power

100-750

Depend on plasma power

6000

200

CNC-CGP-3000

Single side

3000

2200

6000

200

CNC-CGP-4000

Double side

4000

3200

6000

200

CNC-CGP-5000

Double side

5000

4200

6000

200

CNC-CGP-6000

Double side

6000

5200

6000

200

CNC-CGP-7000

Double side

7000

6200

6000

200

CNC-CGP-8000

Double side

8000

7200

6000

200

CNC-CGP-9000

Double side

9000

8200

12000

200

CNC-CGP-11000

Double side

11000

10200

12000

200

CNC-CGP-12000

Double side

12000

11200

12000

200

CNC-CGP-13000

Double side

13000

12200

12000

200
