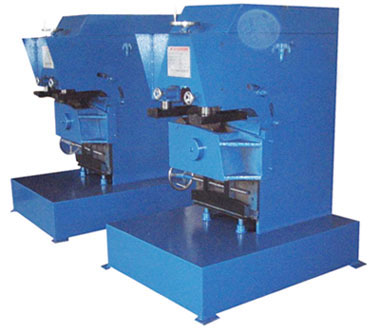

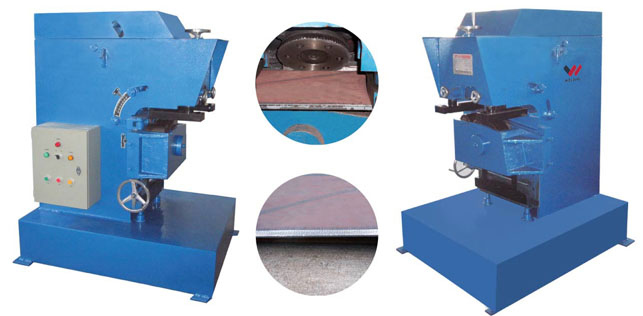

GD20 Milling and Beveling Machine
Main Features:
The beveling machine is adopted with the milling principle to mill the angle for the edge of the steel plate, and to get the groove for welding. The machine is accurate in size, bright and smooth in surface, and is formed once. There is no need to make de-burring, it is convenient, very high in working efficiency (3m/min) and low in energy consumption.

Steel plate

Specification

GD-20

Sheet tensile strenght(N/mm2)

400

400-500

500-600

Tske the sheet for exmaple

A3 sheet

16Mn sheet

1Cr18Ni9ri sheet

Max.width w(mm)

20

16

12

Feeding speed v(m/min)

~2.9

~2.9

~2.9

Deburring angle (a°)

25-55

Min.verthcal edge e(mm)

2

Max.thickness h(mm)

20

Hob dia.(mm)

200

Main motor type

Y112M-4   4KM/1440r/min

Size (mm) Length×width×height

1240×940×1500
