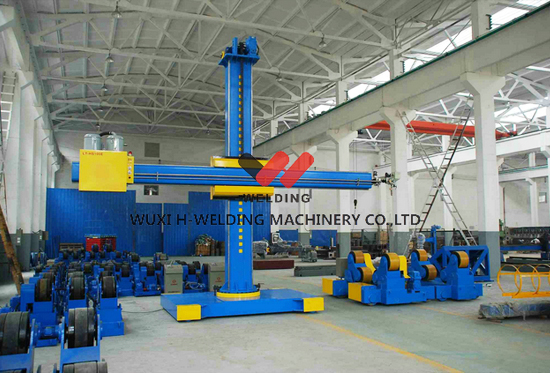

Welding manipulator
Main Features:
Effective stroke of vertical boom from 800mm to 8000mm, 2000mm to 8000mm, also can be customized as per tank diameter.
A smooth ±180°degree rotation.
Pendant with 6m cable.
A standard safety include, anti-fall device and limit switches for all motions.
Movable carriage or fixed stand.

  • Tank Welding
  • Pipe Welding
  • Wind Tower

Specification

LH-1235

LH-3040

LH-4580

LH-5060

LH-8080

Effective stroke of vertical boom (mm)

800-1200

800-3000

1000-4500

1000-5000

8000

Effective stroke of cross boom (mm)

3500

4000

8000

6000

8000

Rotating angle of the vertical boom (°)

±180°

±180°

±180°

±180°

±180°

Up and down speed of cross boom (m/min)

0.4

0.4

0.4

0.4

0.4

Expansion speed of cross boom (m/min)

0.12-1.2

0.12-1.2

0.12-1.2

0.12-1.2

0.12-1.2

Rail span of carriage(mm)

1000

1500

2000

2000

2700
