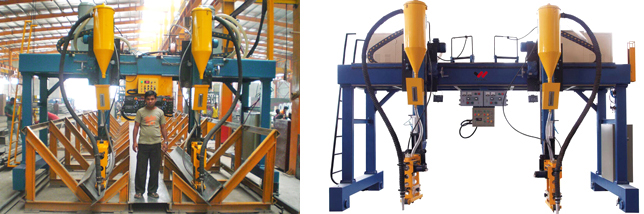

Gantry type welding machine
Main Features:
Gantry type H-beam automatic welding machine is controlled by AC inverter, with functions of stable running and fast traveling speed; The seam-tracking and arc-guide mechanism used for return control and also can ensure the welding gun centering without aberrancy. The main machine and welder is leakage control with automatic flux feeding and recovery system, easy to operate and with a high efficiency.


Model

LHA

Web height (mm)

200-1500

Flange width (mm)

200-800

Welder Model

2 sets Automatic submerged arc welders
(Lincoln DC-1000 or Chendu Zhenzhong MZ1000)

Welded

fillet Welding

Welding speed (m/min)

0.15-1.5

Return speed (m/min)

1.5

Gauge (mm)

4000

Air Pressure (Mpa)

0.2-0.8

Total power (KW)

10 (excluding welding)
