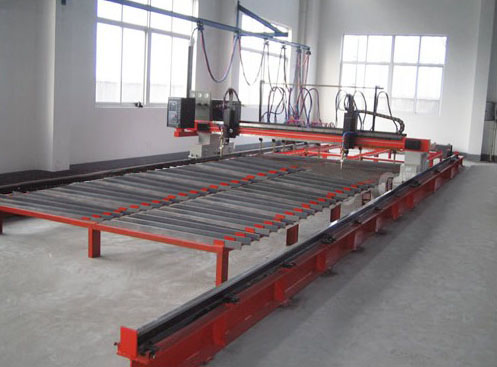

CNC multi-head flame strip cutting machine

Main Features:

This series of cutting machine is a high efficiency and high performance equipment, which uses gantry type, single drive or double drive, and cpmbines CNC control, precision mechanism, and oxygen cutting. This machine is a kind of plate cutting machine in high efficiency for straight plate, which the longitudinal cutting torches can be deployed according to the requirement. Many piece of plates can be cutted at the same time .

Technical parameters

Model	Driving form	Rail span (mm)	Effective width(mm)	Cutting thickness(mm)	Cutting speed(mm/min)	Max speed(mm/min)	Vertical range of the cutting torch(mm)
CNC-CG-3000	Single side	3000	2200	6-150(Depending on the cutting nozzle)	100-750depending on the cutting nozzle)	6000	150
CNC-CG-4000	Single side	4000	3200			6000	150
CNC-CG-5000	Double side	5000	4200			6000	150
CNC-CG-6000	Double side	6000	5200			6000	150
CNC-CG-8000	Double side	8000	7200			6000	150
CNC-CG-10000	Double side	10000	9200			6000	150
CNC-CG-12000	Double side	12000	11200			6000	150
