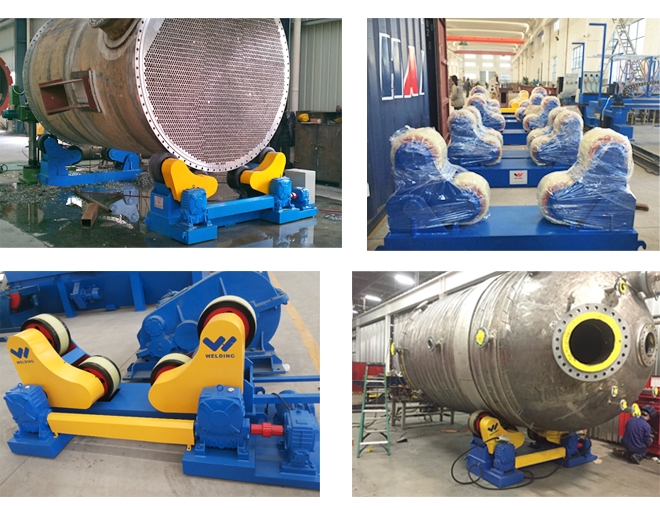

Self-adjustable welding rotator
Main Features:
Compared with the conventional type, The roller-bogie align itself automatically with the diameter of the work-piece.
This series welding rotator enables a more even weight distribution, a significant advantage when welding thin-walled work-piece/vessels.
The whole welding process can be effectively automated.


Type

Max loading(kg)

Range of suitable work piece(mm)

Dia and width of the wheel(mm)

roller linear velocity(m/h)

Power of motor(kw)

Way of setting

Rubber roller

Metal rollers

HZG-5

5000

Φ250-2300

Φ250×100

2×Φ240×20

6-60

0.75

Variable frequency control



HZG-10

10000

Φ320-2800

Φ300×120

2×Φ290×25

6-60

1.1

HZG-20

20000

Φ500-3500

Φ350×120

2×Φ340×30

6-60

1.5

HZG-40

40000

Φ600-4200

Φ400×120

2×Φ390×40

6-60

3

HZG-60

60000

Φ750-4800

Φ450×120

2×Φ440×50

6-60

4

HZG-80

80000

Φ850-5000

Φ500×120

2×Φ490×60

6-60

4

HZG-100

100000

Φ1000-5500

Φ500×120

2×Φ490×70

6-60

5.5

HZG-150

150000

Φ1000-6500

according to customer requirement

6-60

2×3
